TS5210F Series Precision Resistor Trimming Machine | Ultra-Low Resistance Adjustment for Alloy Products
Description & Introduction
The TS5210F series laser trimming machine is primarily designed for the precise resistance adjustment of ultra-low resistance alloy products. It utilizes the high-energy density of lasers to vaporize and etch the surface of alloy resistors, achieving precise resistance adjustment by altering the cross-sectional area of the alloy resistor.
This equipment features a proprietary high-precision ultra-low resistance measurement and control system, enabling accurate laser trimming for various ultra-low resistance alloy products.
Device Features
Independently developed multi-channel measurement system with high precision, speed, and reliability.
Compatible with various probe board connectors, supporting standard probe boards of different models.
Utilizes high-precision X/Y motion modules and an optional rotary platform to meet diverse processing requirements.
Equipped with coaxial vision alignment functionality, enhancing processing accuracy and operational convenience.
Integrated automated loading and unloading mechanism to improve batch production efficiency.
Trimming software supports the import and export of adjustment plans, facilitating the processing of different product models.
Trimming software allows bulk export of processing data, meeting quality control and data analysis needs.
Includes real-time preview of material information and statistical charts in the trimming software, enabling a clear understanding of current material status and overall processing conditions.
Trimming software supports remote functionality (TCP/IP-based) for integration with factory MES systems or other equipment.
Specifications
Measurement System
| Adjustment Range | 100 μΩ ~ 500 mΩ |
| Adjustment Accuracy | ±0.3% |
| Measurement System Resolution | 0.1 μΩ |
Optical Parameters
| Laser Wavelength | 1064 nm |
| Precision Resolution | 1.5 μm |
| Beam Positioning | High-speed, high-precision galvanometer motor |
| Repeat Positioning Accuracy | 3 μm |
| Working Area | 100 x 100 mm |
| Spot Size | 30 ~ 50 μm |
Measurement Channel Card
| Standard Configuration | 24 channelsSoftware |
| Operating System | Win7/Win10 Custom-developed |
| Adjustment Software | Resistor Trimming, featuring integrated parameter prompts and user-friendly operation |
Power Requirements
| Equipment Power Supply | 220V/50Hz/10A (single-phase) |
| Air Supply Pressure | 0.4 ~ 0.6 MPa |
| Ambient Temperature | 24 ± 4℃ (air-conditioned environment) |

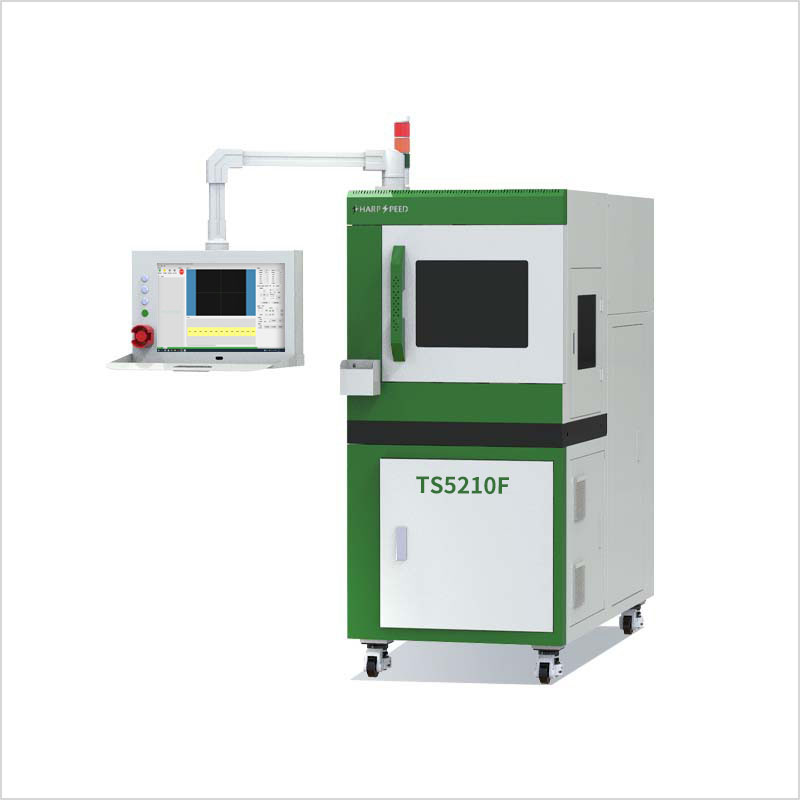

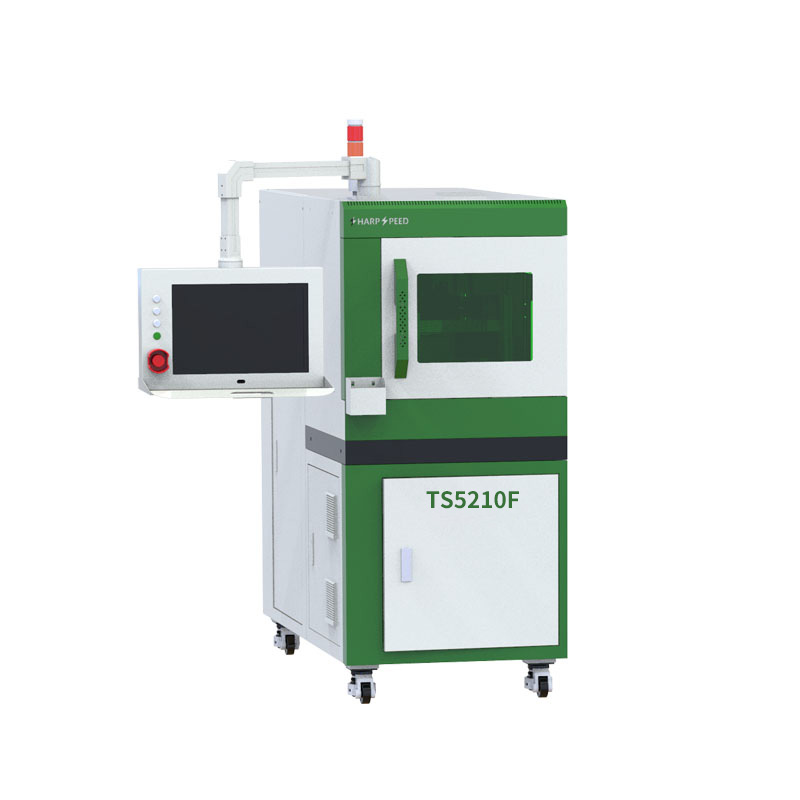

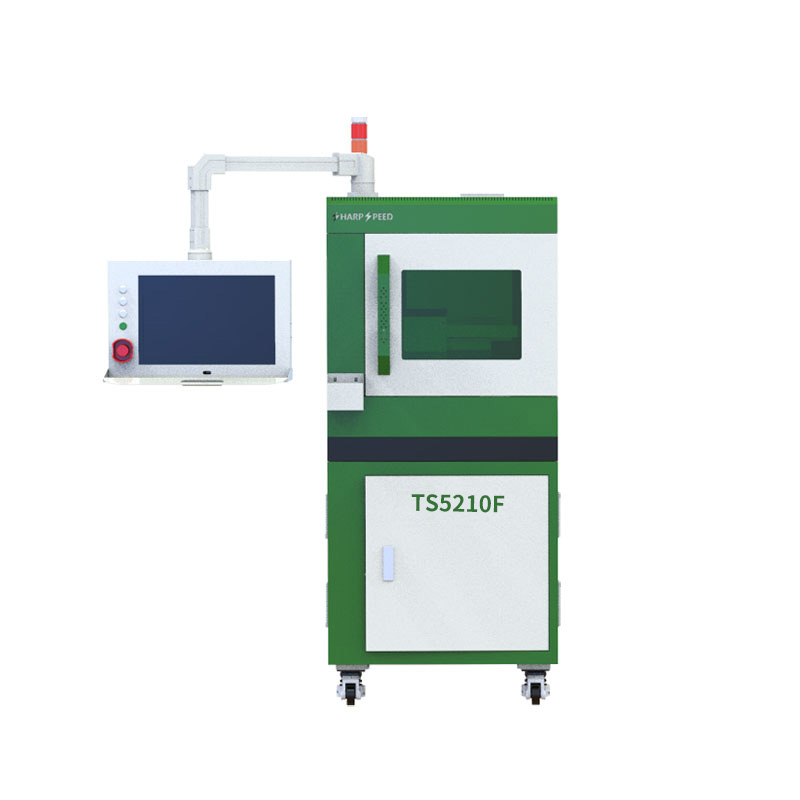

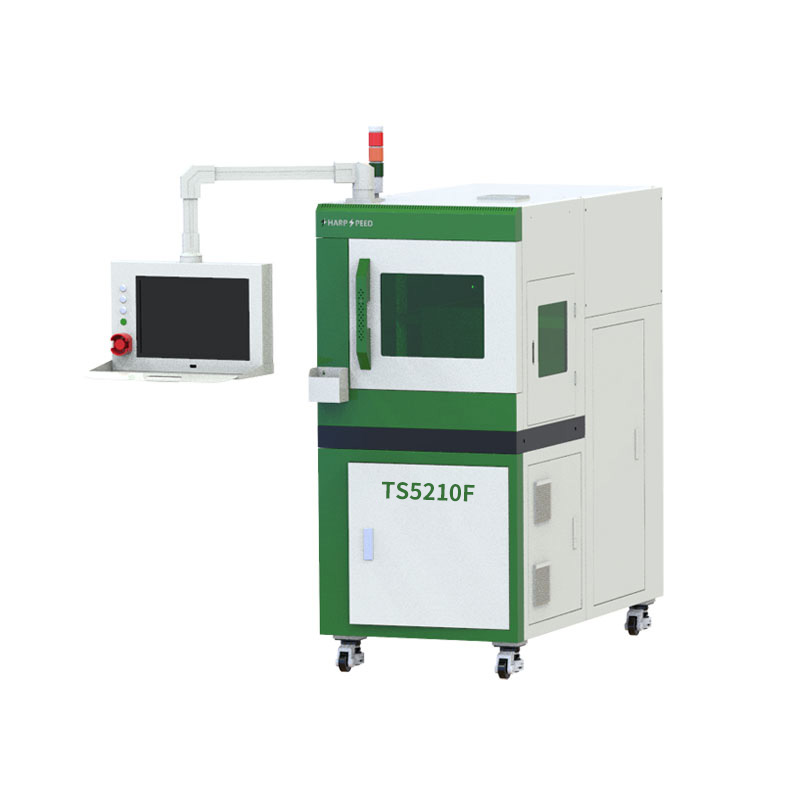

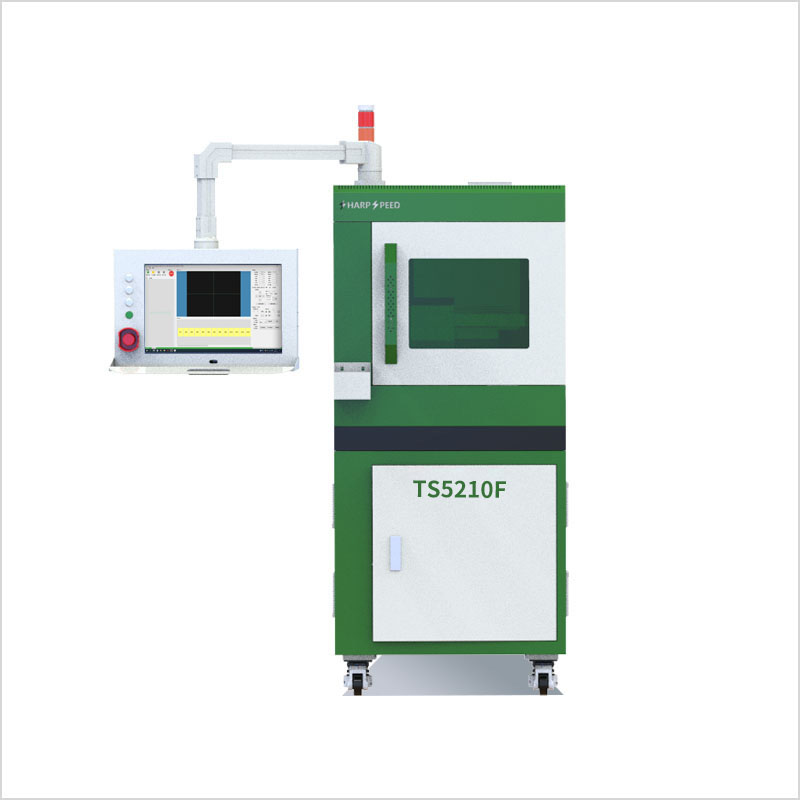

Product Pictures
