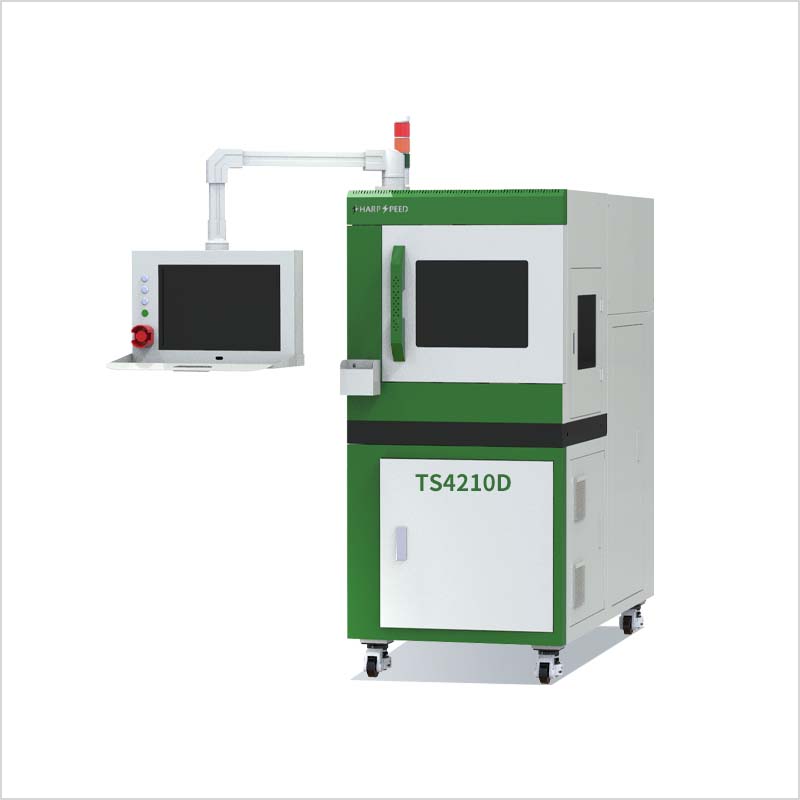

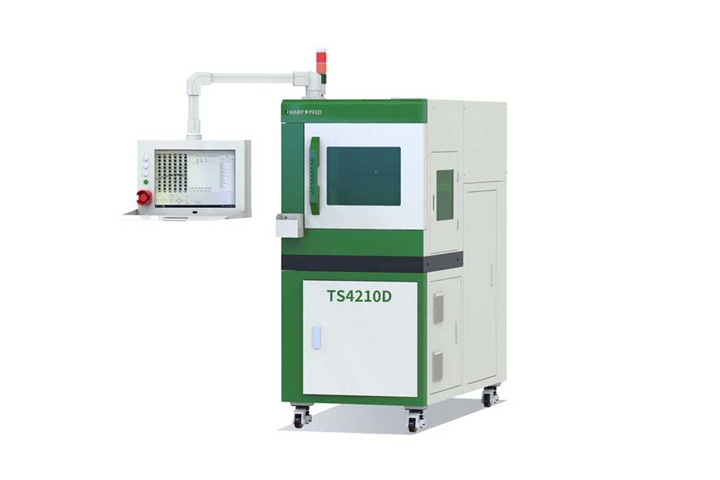

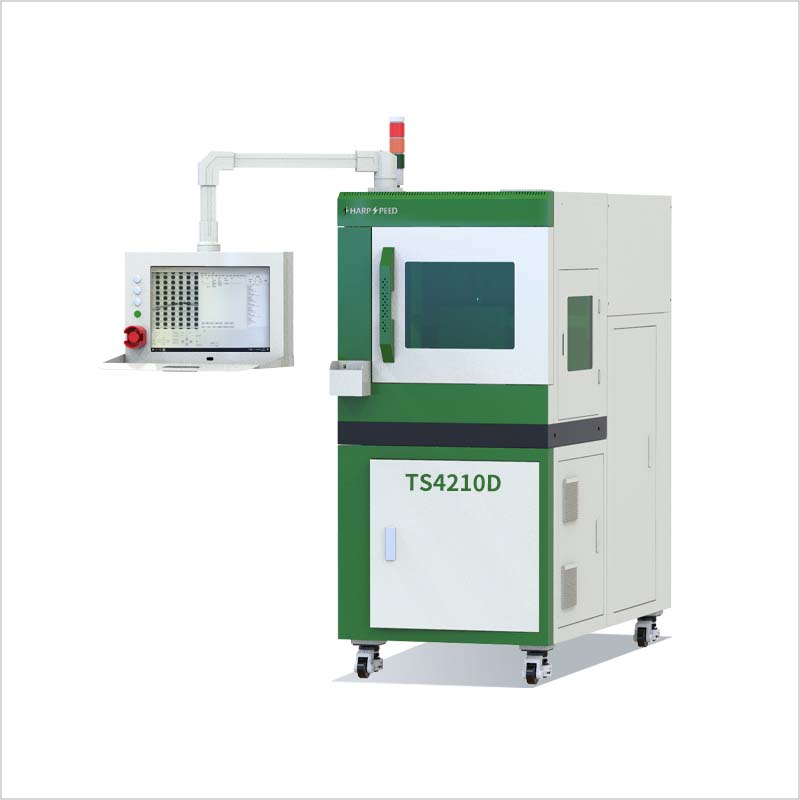

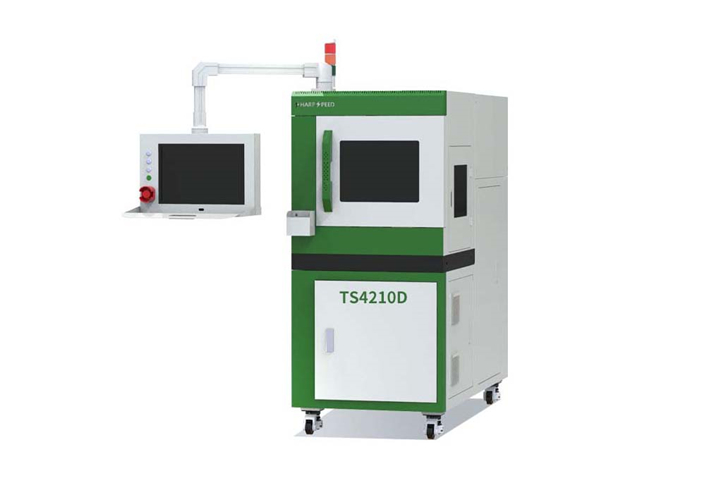

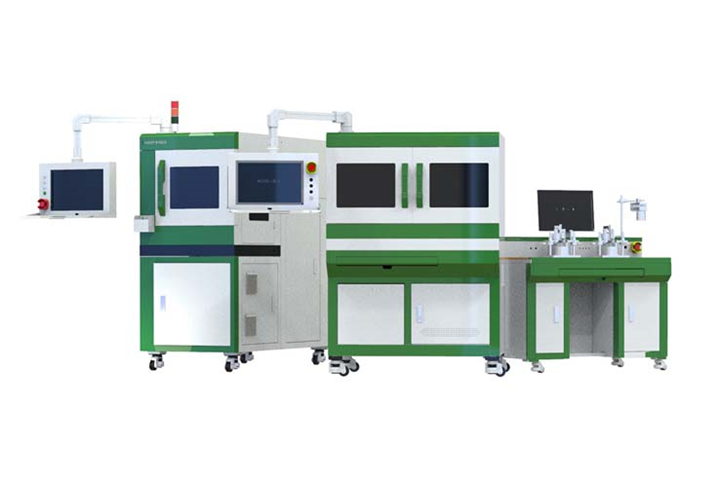

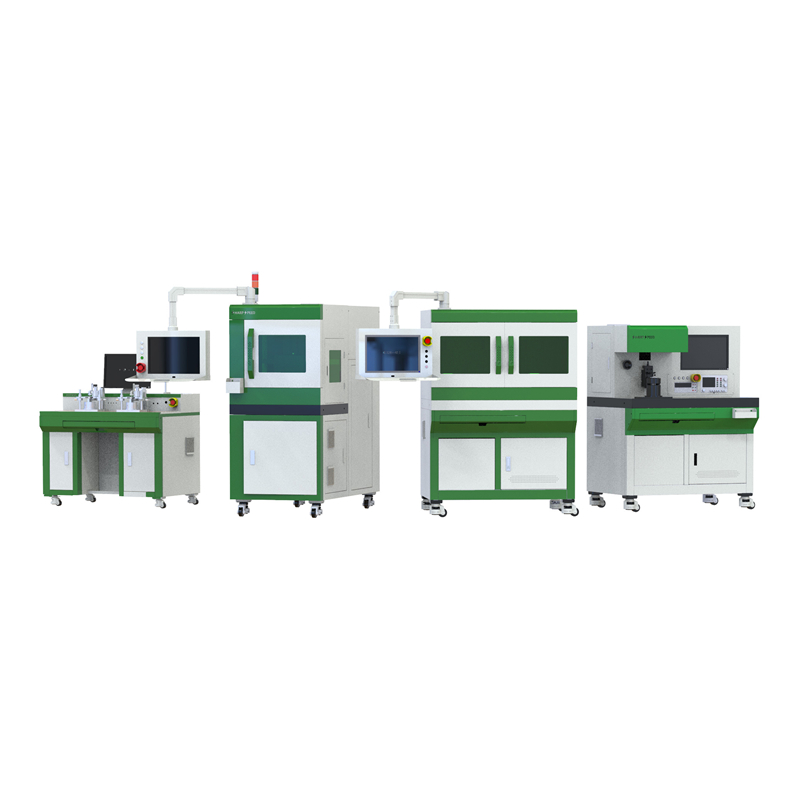

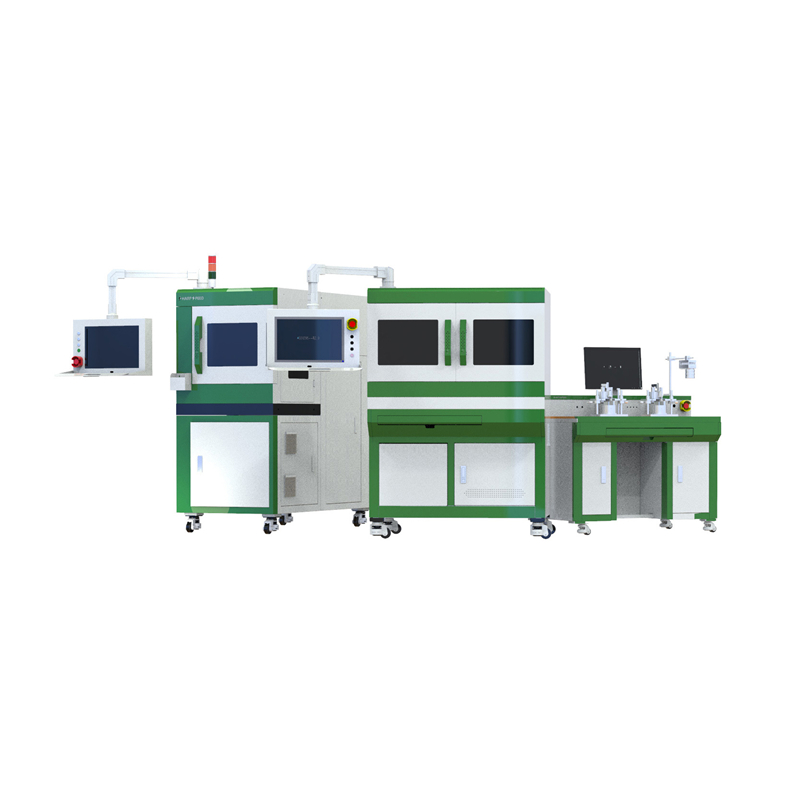

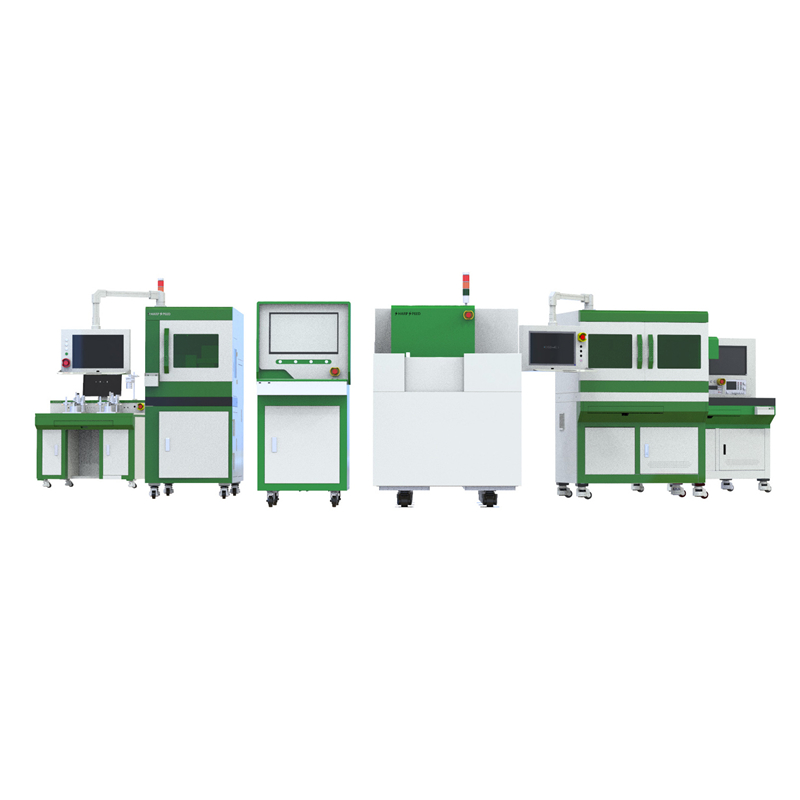

TS4210D Multi-Function Laser Resistor Trimmer | High Precision for Electronics Adjustment
Description & Introduction
The TS4210D Series Laser Resistor Trimming Machine is a precision laser trimming device designed and developed for the multi-functional resistor trimming market. It is capable of performing precise laser adjustments on various thick-film integrated circuit parameters. This equipment is widely used for laser trimming of products such as pressure sensors, current sensors, optoelectronic sensors, chargers, attenuators, and various MEMS sensors.
Device Features
▪ The device can achieve precision trimming of various parameters of integrated circuits, such as resistance, voltage, current, period, frequency, and so on.
▪ The independently developed multi-channel measurement system (up to 96 channels) features high accuracy, fast speed, and stable reliability.
▪ Suitable for various thick-film circuits
▪ Can be matched with connectors of different specifications for probe boards, compatible with various standard probe boards. Additionally, custom flying probe measurement structures can be tailored to meet specific trimming requirements.
▪ Utilizing a high-precision X/Y module combined with a pneumatic clamping platform structure, it can meet the size requirements of different products. The clamping platform features adjustable rotation angles and height.
▪ Equipped with proprietary trimming software, the user-friendly interface ensures simple and easy operation. Coupled with coaxial video automatic alignment, it provides a straightforward and efficient operating experience.
▪ The flexible and straightforward independent programming function meets personalized trimming requirements, facilitating easy saving, retrieval, and modification, significantly enhancing efficiency in large-scale production.
▪ Multiple resistance trimming knife types are available: single knife, L-knife, sweeping, U-knife, and random dotting mode, meeting various process requirements.
▪ Supports batch import and export of trimming data, facilitating production processing and quality control management.
▪ Reserved GPIB expansion interface allows external connection of measuring devices for additional functionality expansion. Optional image auto-positioning module is available.
▪ The equipment comes standard with an automatic feeding and unloading mechanism, significantly enhancing batch production efficiency.
Specifications
| Model | TS4210D Series | |
| Measuring System | Processing Range | 1.0-10MΩ |
| Processing Precision | ±0.3% | |
| Measuring Precision | <50Ω: ±0.02%(±0.05/R) | |
| 50-160KΩ: ±0.02% | ||
| >160KΩ: ±0.02% + ±0.1 per MΩ | ||
| Optical System | Wavelength | 1064nm |
| Working Size | 100x100mm | |
| Resolution | 1.5um | |
| Repetition Precision | 3.0um | |
| Beam Size | 30-50um | |
| Control System | Software | Self-developed Trimlab |
| Operation System | Win7/Win10 | |
| Language | Multilingual | |
| Software Customization | Optional | |
| Others | Measuring Channel Card | 24pin (Max. 96pin Optional) |
| Power Supply | 220V 50HZ 10A | |
| Gas Pressure | 0.4-0.6Mpa | |
| WorkingTemperature | 24±4℃ |

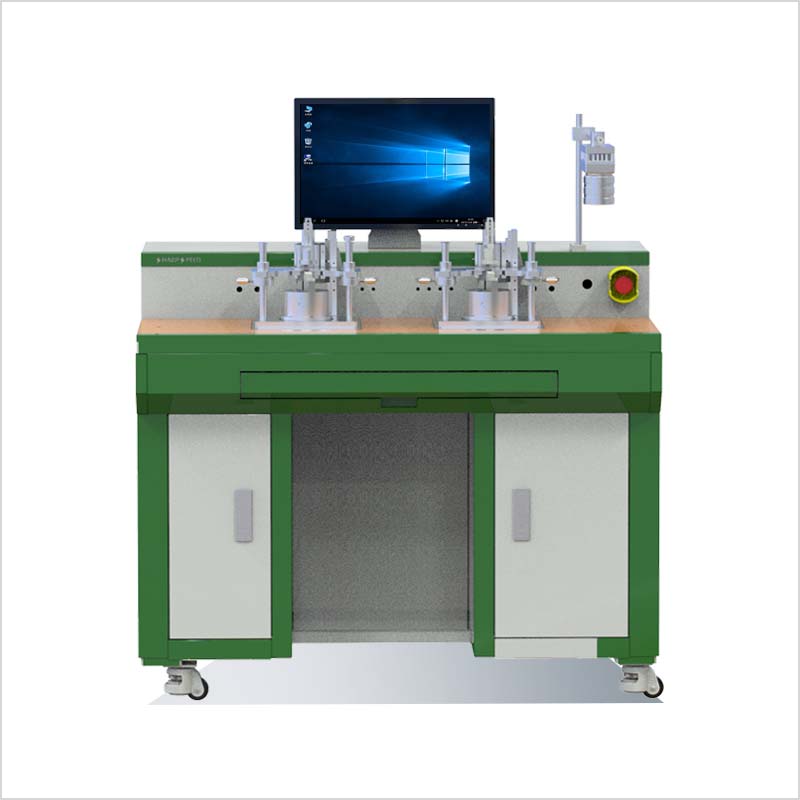

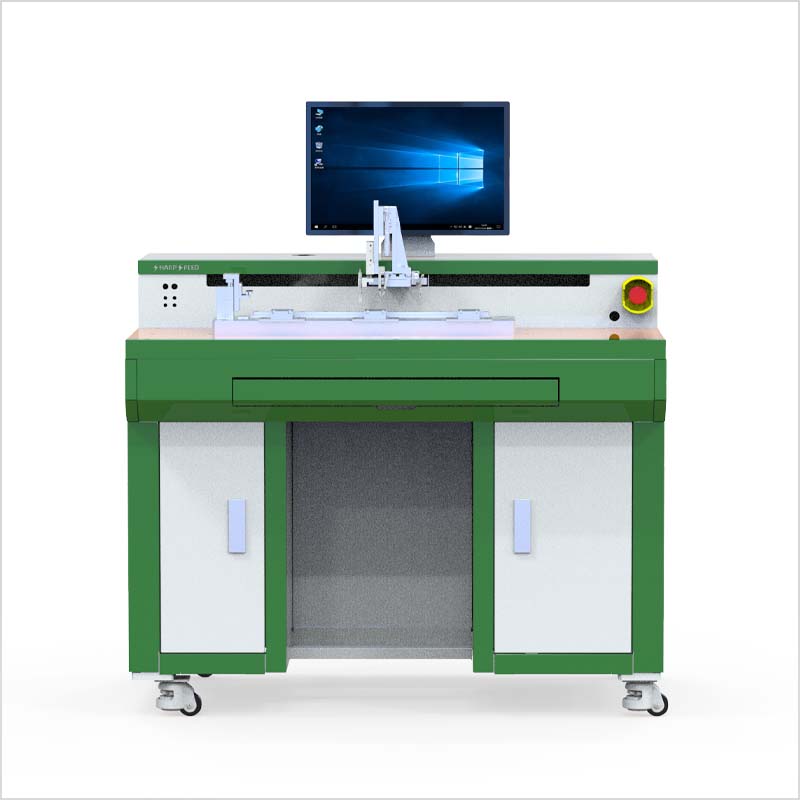

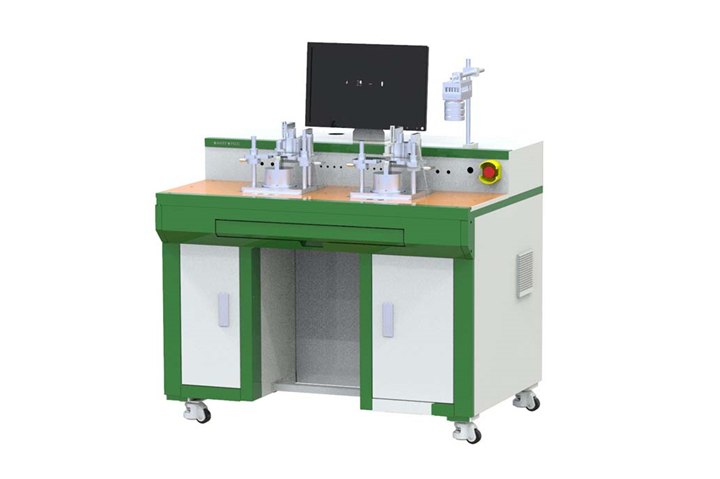

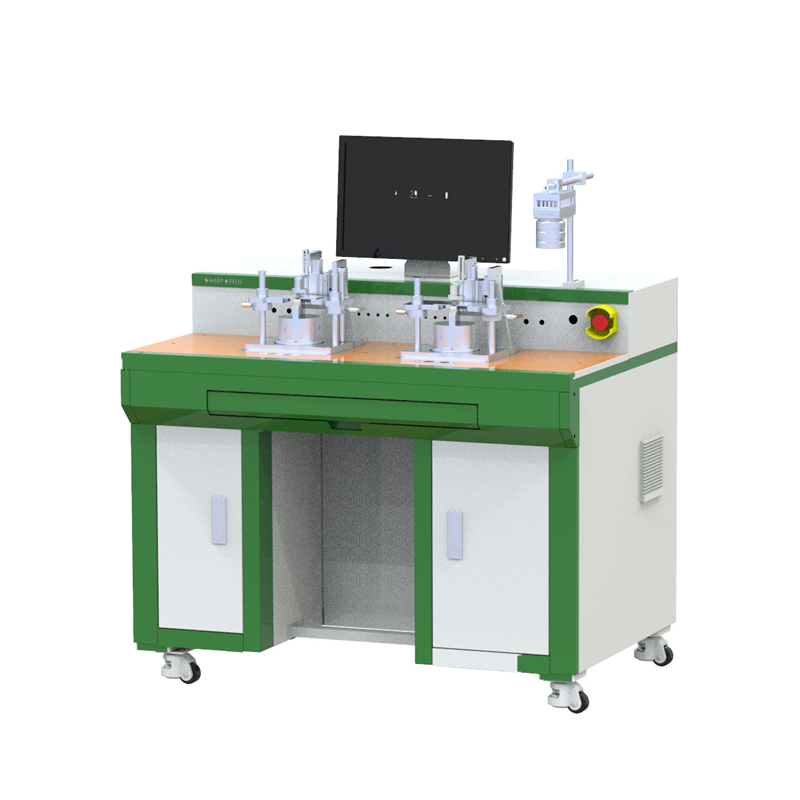

Product Pictures
