Equipment Introduction
The TS3335D Series Multifunctional Laser Trimming System is designed for precision laser trimming of various thin-film circuits, such as inertial gyroscopes, high-precision resistors, analog ICs, and thin-film sensors.
Equipment Features
Utilizes a 355nm wavelength high-peak-pulse UV laser for trimming.
Continuously adjustable, highly stable laser power.
Video image-based automatic positioning technology for precise location control.
Supports a wide range of trimming and cutting path definitions.
Communication with external devices through various interfaces such as network, GPIB, and serial ports for automated trimming.
Equipped with a high-precision X-Y worktable for stepwise, repeatable multi-workpiece automated trimming.
Onboard integrated measurement and control system, with optional external measurement system expansion.
Rich IO interfaces for integration with automation platforms.
Specifications
| Model | TS3335D -Ⅰ | TS3335D - Ⅱ |
| Wavelength | 355nm | 356nm |
| Laser Power | ＞2W | ＞1W |
| Beam Size | 10-15μm | 4-5μm |
| Scanning Speed | 0-6000mm/s Adjustable | 0-6000mm/s Adjustable |
| XY Stage Travel | 200*300mm | 200*300mm |
| XY Stage Precision | ±1μm | ±1μm |

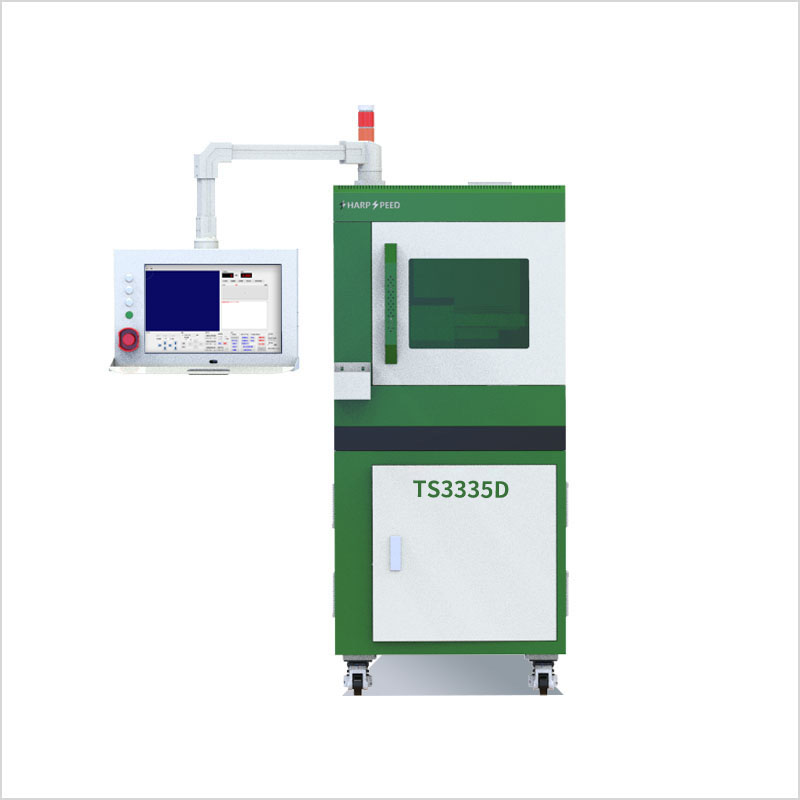

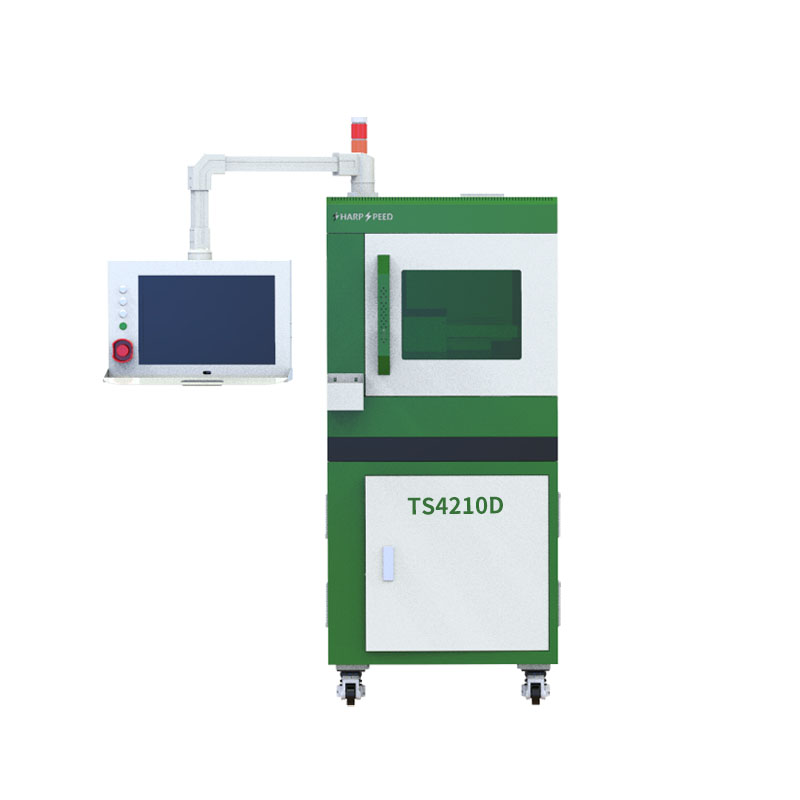

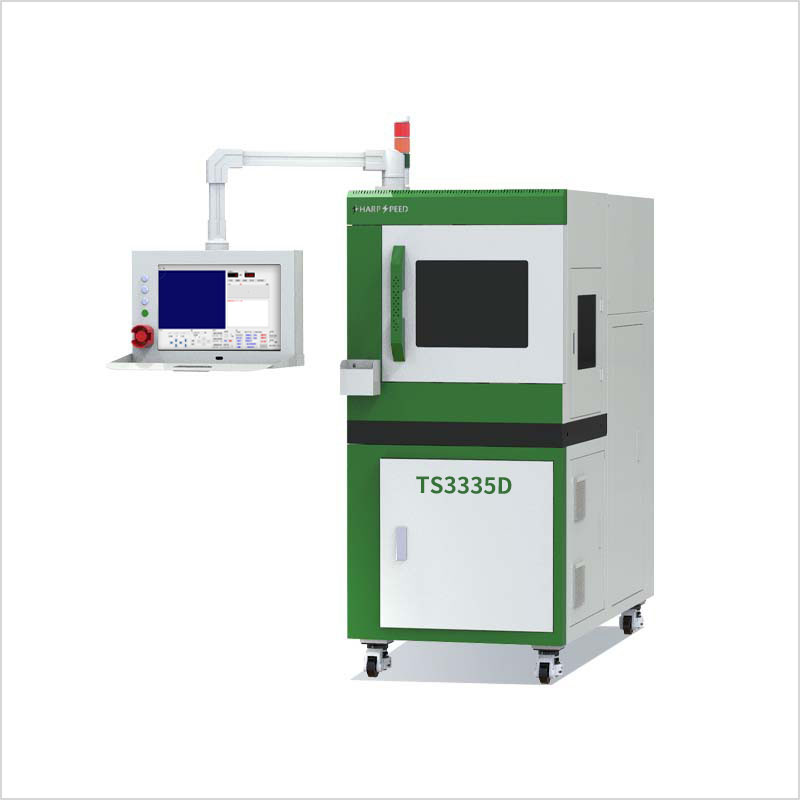

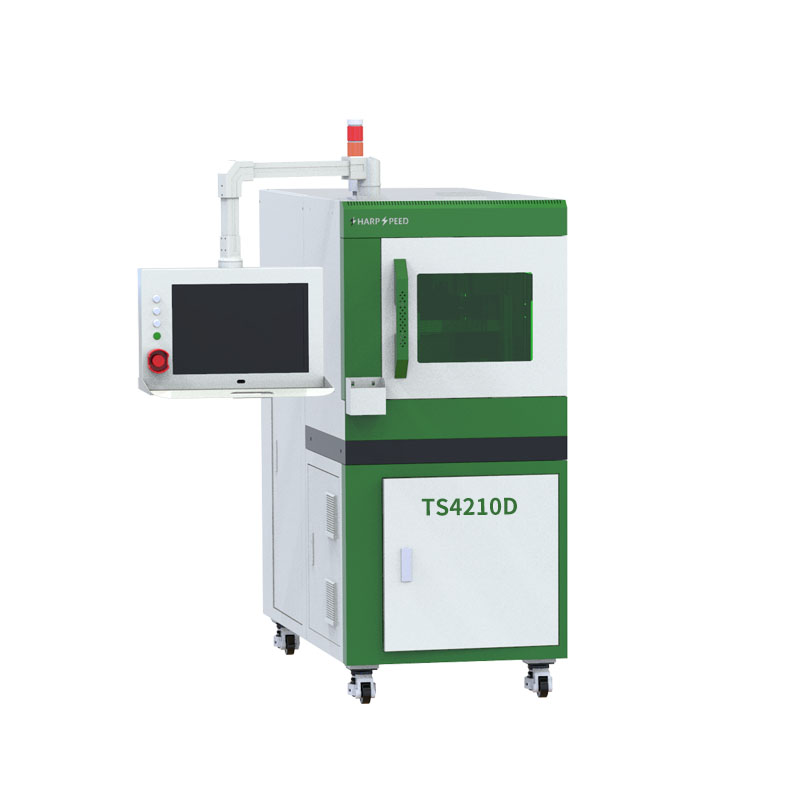

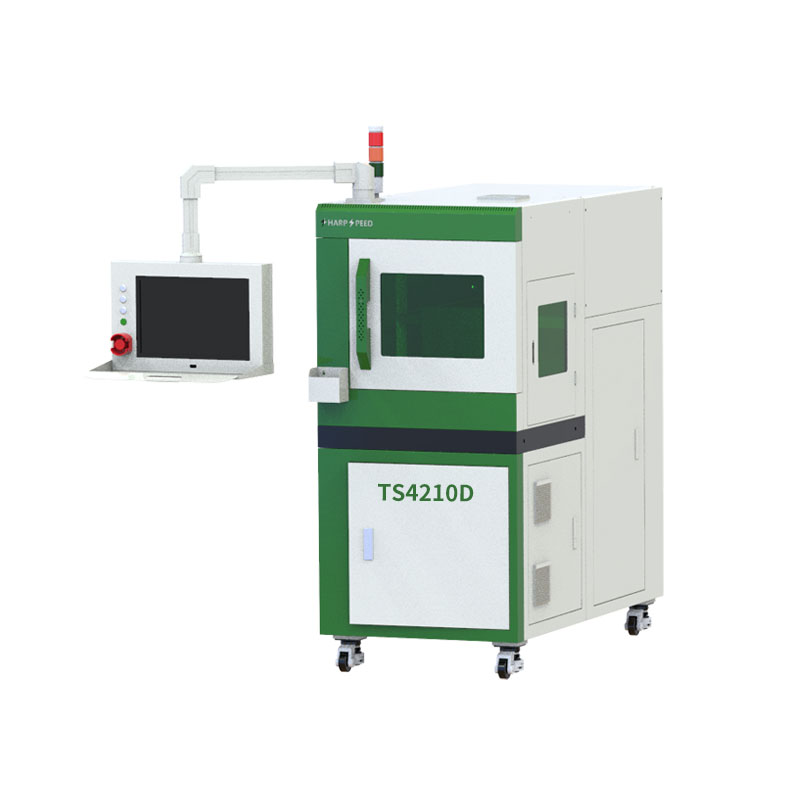

Product Pictures
Maintenance points +
Maintenance points of thin film laser trimming machine
▪ Regular cleaning: keep the surface of the equipment and optical components clean to avoid dust and dirt affecting the laser focus.
▪ Inspection of key components: Regularly inspect components such as laser, cooling system, vacuum adsorption device and mechanical arm to ensure their normal operation.
▪ Calibration and Adjustment: Regularly calibrate the laser head and robotic arm to ensure cutting accuracy.
▪ Environmental control: Operate in a clean and dry environment to avoid the effects of moisture and dust on the equipment.
▪ Consumables Replacement: Replace damaged cutters or worn parts in time
