RD-L500 Linear Displacement Potentiometer Tester | High Precision Measurement for Sensors
Equipment Introduction
The RD-L500 Linear Displacement Potentiometer Tester is a high-precision and comprehensive testing instrument tailored for the potentiometer market. Designed specifically for measuring various parameters of linear displacement potentiometers, it is developed in accordance with industry standards such as GJB1865A-2015 (General Specification for Non-Wire Wound Precision Potentiometers) and GBT-15298-94. Equipped with proprietary measurement software (DsmLab V1.0), the RD-L500 ensures precise evaluation of all critical technical parameters, fully meeting the stringent testing requirements for military-grade potentiometer production and quality assurance.
Equipment Features
Powerful functionality, capable of precisely measuring all parameters of potentiometers.
High testing efficiency: Four times faster than traditional equipment.
Equipped with networking capabilities: Connects to network management systems, enabling real-time data upload and seamless integration into smart factories.
Applications
Used for testing various indicators of linear position sensors, including effective electrical travel, absolute linearity, independent linearity, curve fitting accuracy, contact resistance, contact resistance variation, total resistance, noise resistance, backlash, and more.

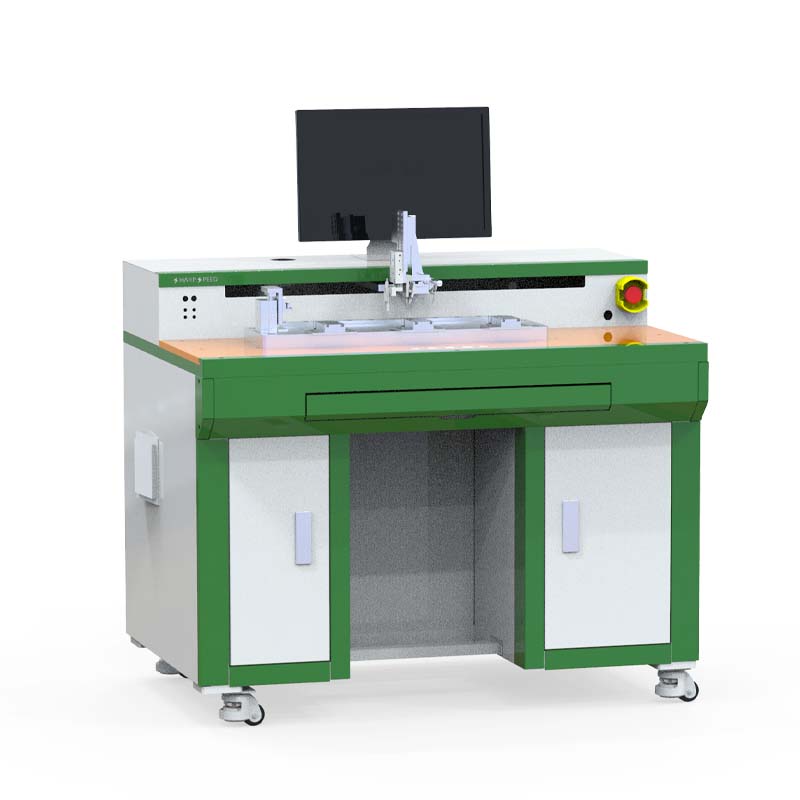

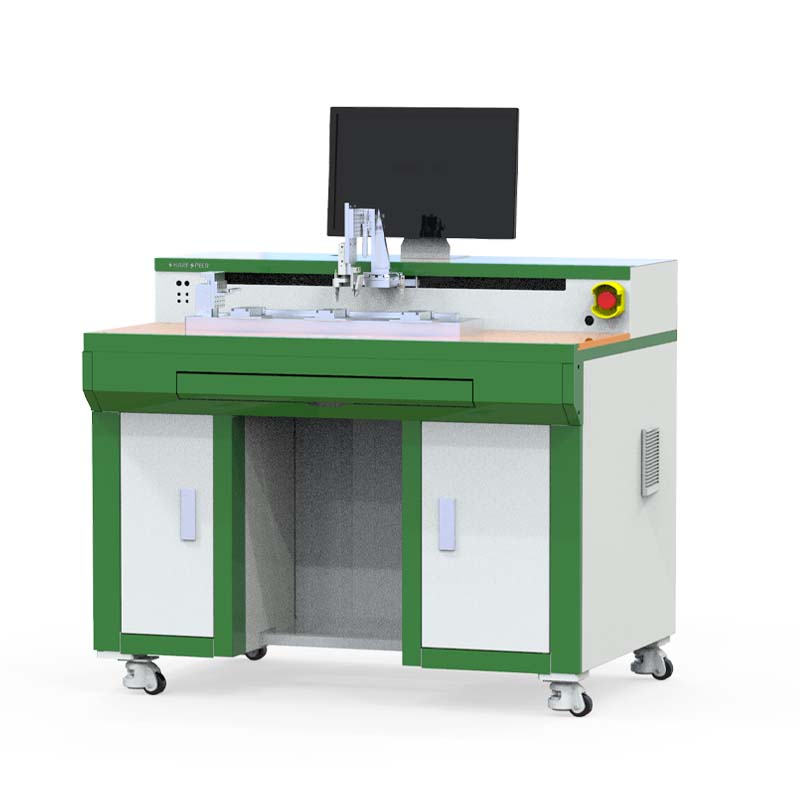

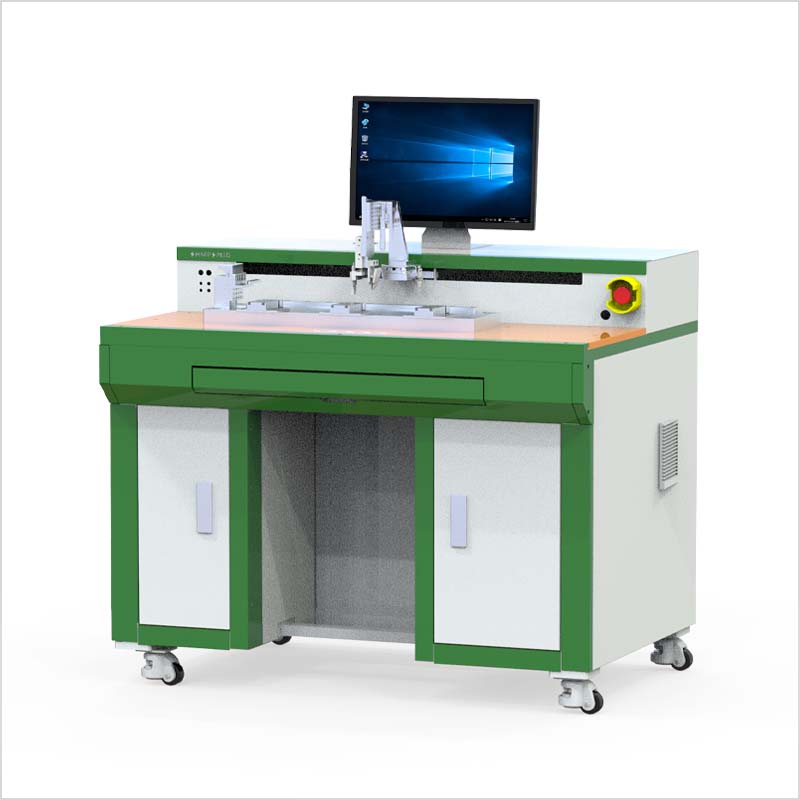

Product Pictures
Advantage +
Advantages of Linear Displacement Potentiometer Tester
▪ High Accuracy and Repeatability: Capable of providing high accuracy displacement measurement with repeatability up to 0.0127mm.
▪ Multiple output options: Supports a wide range of analog and digital output signals for different control systems.
▪ Durable: Made of robust materials (e.g. anodized aluminum housing) and sealed design, it can be used in harsh environments.
▪ Customization: Different stroke lengths and output signals can be selected according to different application requirements.
