Equipment Introduction
The RD-C50 Angular Displacement Potentiometer Tester is high-precision comprehensive testing instruments for the potentiometer market. These devices are designed for measuring various parameters of angular displacement potentiometers. The development of the equipment is based on relevant standards such as GJB1865A-2015 (General Specification for Non-Wire Wound Precision Potentiometers) and GBT-15298-94. Equipped with proprietary measurement software (DsmLab V1.0), the system enables precise measurement of all key technical parameters, meeting the testing requirements of military-grade potentiometer production and quality control.
Equipment Features
Dual-station design: Allows seated operation with a metal frame and epoxy-insulated tabletop, enhancing testing efficiency (testing time: <2 minutes per unit).
High-precision system: Utilizes a precision DD direct-drive servo system/linear motor system, combined with a 6-digit multimeter and professional voltage (current) source, ensuring measurement accuracy and stability.
Adjustable clamping structure: Features pneumatic limit with manual locking and adjustable Z-axis clamping, compatible with various specifications and shaft diameters.
Comprehensive functionality: Capable of testing all major technical indicators of potentiometers in one operation (customizable testing parameters) with user-friendly software.
High-frequency sampling: Supports a maximum sampling frequency of 5KHz, significantly improving data acquisition speed.
Data export: Real-time data export with customizable items and automatic generation of test reports, meeting the need for raw data storage and records.
Versatile measurement: Supports measurement of products with different tap modes, accommodating various testing requirements.
Device Functions
Electrical Continuity Measurement: Adjustable frequency between 1~5kHz, with adjustable motion speed and data acquisition intervals.
Contact Resistance Measurement (Current Method): Measurement current is configurable (minimum resolution of 1mA).
Noise Resistance Measurement: Resistance range: 100Ω~50kΩ, sampling frequency of 2.5kHz.
Contact Resistance Variation (C.R.V) Measurement: Measurement current: 1.0mA.
Output Smoothness Measurement: Resistance range: 100Ω~50kΩ.
Total Resistance Measurement: Measurable resistance range: 100Ω~50kΩ.
Sliding Noise Measurement: Measured using the dynamic noise "A" method.
Backlash Measurement: Measured using the linear displacement difference method.
Effective Electrical Travel Measurement.
Product Sensitivity Measurement.
Linearity Measurement.

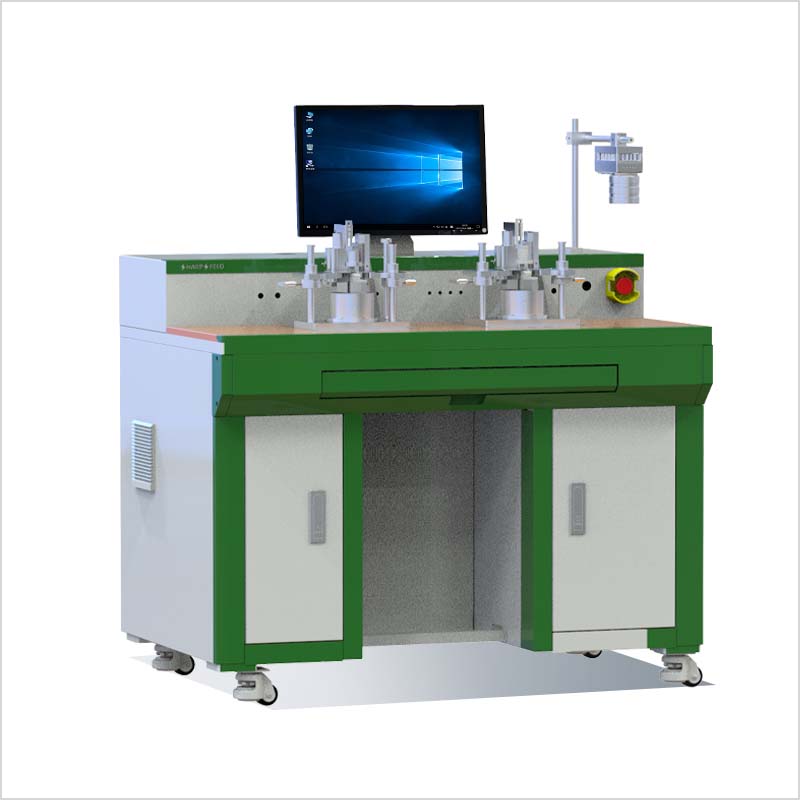

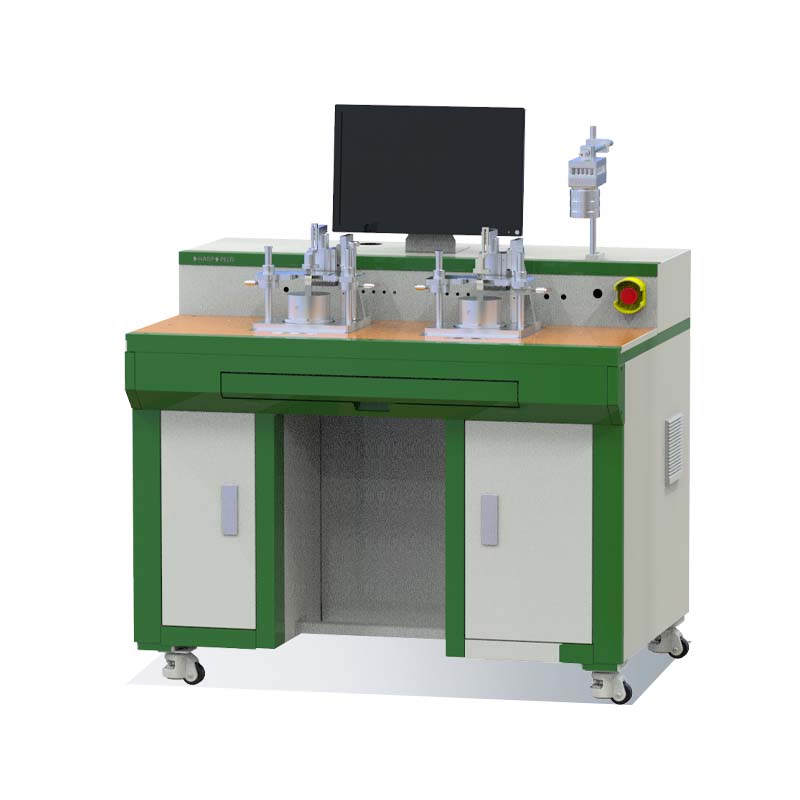

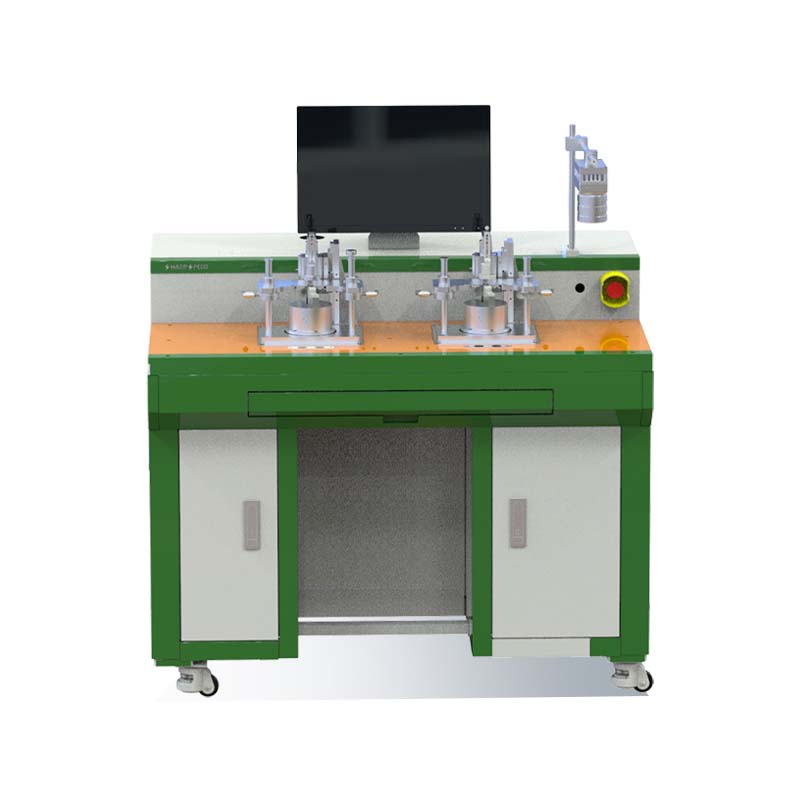

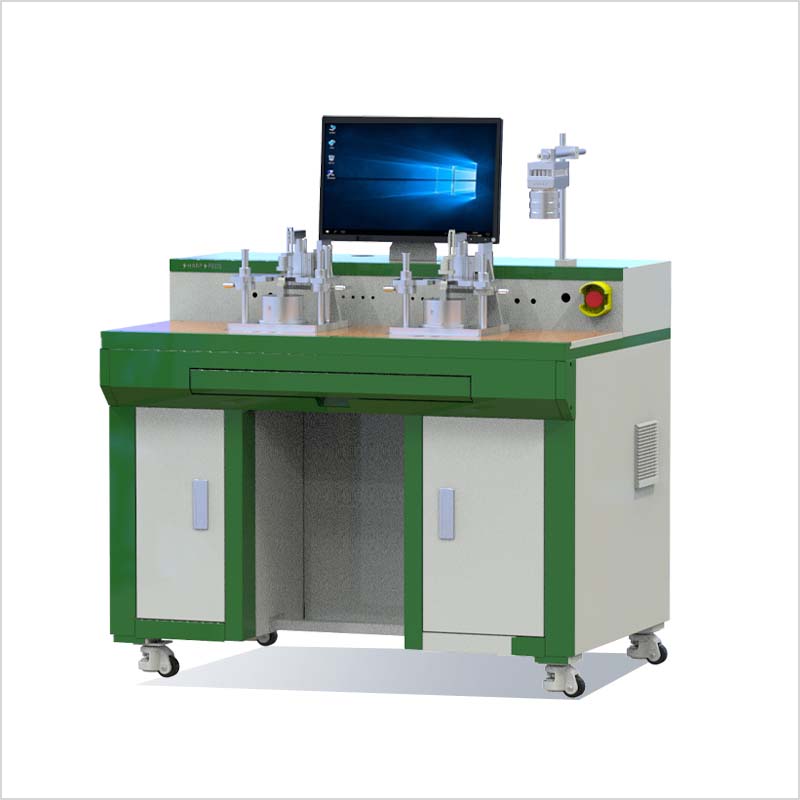

Product Pictures
