Device Features
Equipped with PST and PS0 functions.
Vision-based image automatic positioning technology ensures precise position control.
Features network and serial communication interfaces for external connectivity.
Compatible with various cutting graphic formats: DXF, PLT, NC, LCM, etc.
Utilizes a high-precision X-Y-Z worktable, enabling step-by-step repeatable multi-workpiece cutting.
Application
The PC510 Ultrafast Laser Cutting Machine utilizes a high-energy infrared picosecond laser system with a pulse width of less than 10 ps. It is ideal for cutting and processing various brittle materials, supporting high-speed cutting of irregular materials.
Typical Applications
Automotive and 3C electronics glass cutting
Sapphire cutting
Quartz crystal cutting
LCD/OLED display panel cutting
UTG (Ultra-Thin Glass) cutting
Medical glass tubes and utensils
Large-hole furniture glass cutting
Microcrystalline glass cutting
Specifications
| Laser Wavelength | 1064 nm |
| Pulse Width | <10 ps |
| Z-axis Motion Travel | 100 mm |
| X/Y Motion Travel | 500 x 500 mm |
| Processing Thickness (Single Pass) | ≤8 mm |
| X/Y Motion Platform | Linear Motor |
| X/Y Repeated Positioning Accuracy | ≤ ±0.5 µm |
| Operating System | Win7/Win10 Self-developed cutting software CutMaker is user-friendly and easy to operate |
| Air Supply Pressure | 0.4-0.6 MPa |
| Equipment Power Supply | 220V/50Hz/16A (Single Phase) |
| Ambient Temperature | 24 ± 4°C; air-conditioned and temperature-controlled |

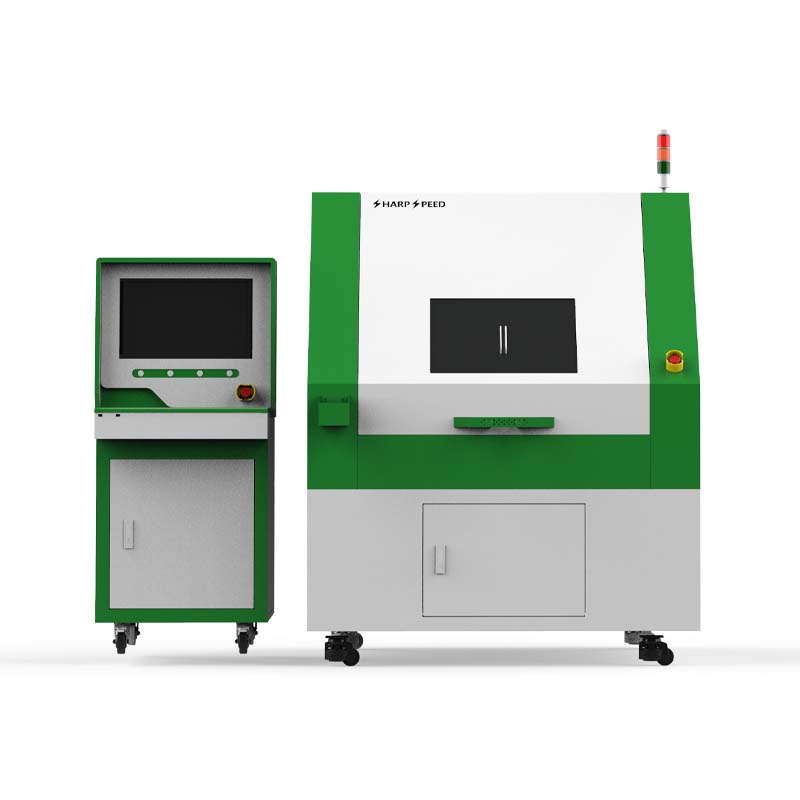

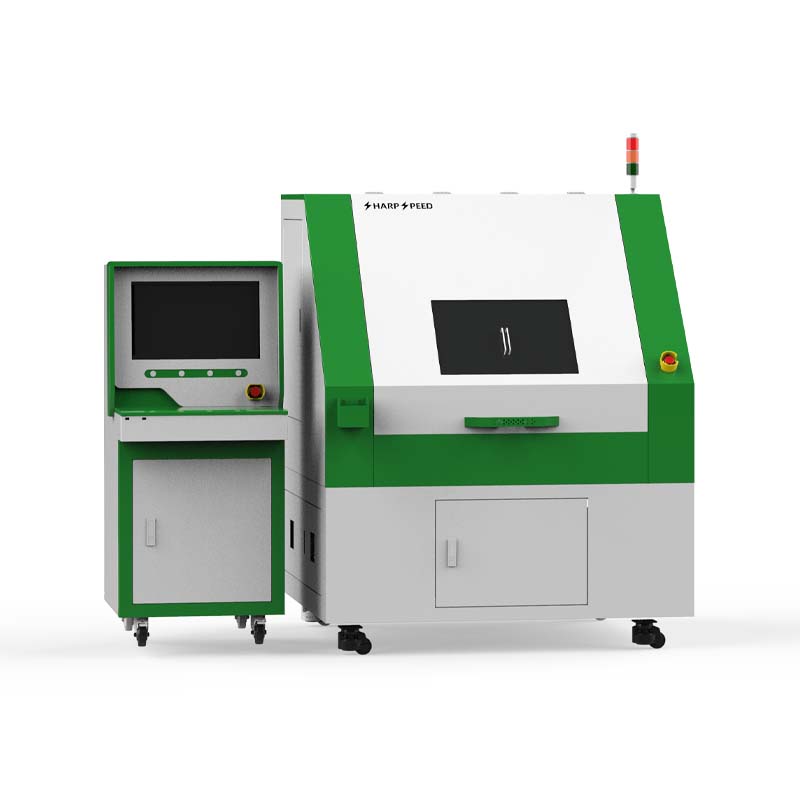

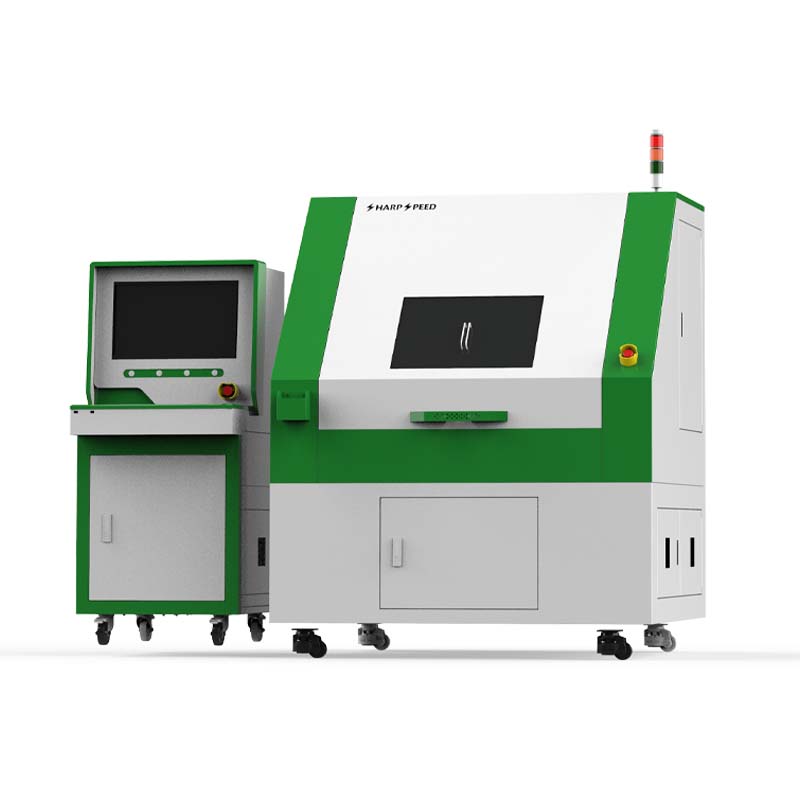

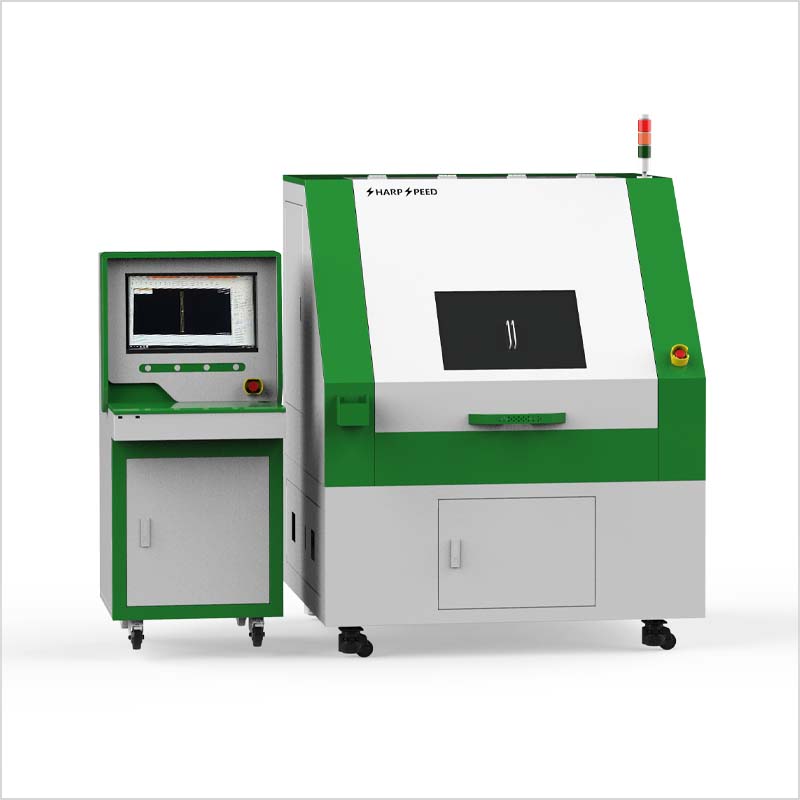

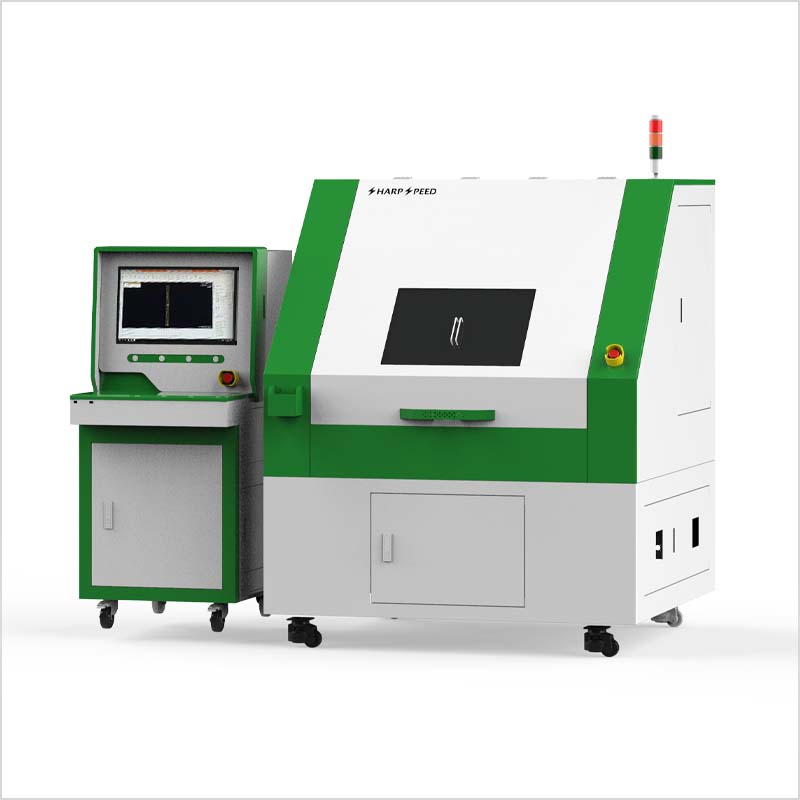

Product Pictures
FAQs +
How to maintain your ultra fast laser cutting machine for longer life?
▪ Clean the table, guide rails and limiters daily and clean the waste collection box regularly.
▪ Clean the chiller regularly and replace the pure water.
▪ Lenses and reflectors need to be cleaned regularly to avoid scratches.
▪ Keep the operating environment of the equipment dry and dust-free to avoid moisture causing rusty lenses or short circuit.
