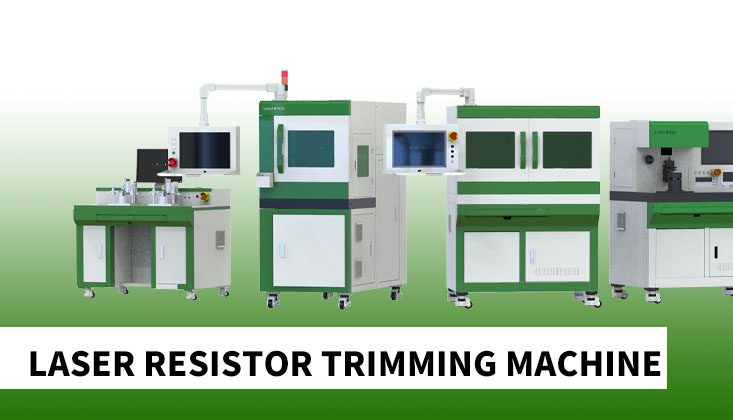

What is the Difference Between Laser Resistor Trimming and Traditional Resistor Adjustment?

Introduction

In modern electronics manufacturing, resistor precision is critical for ensuring circuit stability and performance. Traditional resistor adjustment methods have been used for decades, but laser resistor trimming has emerged as a superior technology in many industries. This article explores the principles behind laser resistor trimming, compares it to traditional adjustment methods, and highlights its advantages and applications.

What is Laser Resistor Trimming?

Laser resistor trimming is a high-precision method used to adjust the resistance value of thick film, metal film, and film thermistor resistors. This process uses a focused laser beam to selectively remove material from a resistor, thereby fine-tuning its resistance to the desired specification.

Working Principle:

1. A resistor is fabricated on a substrate, such as ceramic or silicon.

2. A laser is directed at the resistor to remove a precise amount of material.

3. The resistance is continuously monitored until it reaches the target value.

4. The process ensures high accuracy without mechanical stress or physical contact.

Materials Used:

• Thick Film Resistors – Made from screen-printed resistive pastes.

• Metal Film Resistors – Utilize a thin metal layer for resistance control.

• Film Thermistors – Temperature-sensitive resistors with high precision.

Traditional Resistor Adjustment Methods

Before laser trimming, manufacturers relied on various methods to adjust resistance:

• Mechanical Trimming: Physically scraping or cutting resistive material.

• Potentiometer Adjustment: Using variable resistors in circuits.

• Chemical Etching: Altering resistance through controlled etching.

• Burn-in Processes: Using electrical stress to modify resistance over time.

Limitations of Traditional Methods:

• Lower precision – Hard to achieve fine adjustments.

• Physical damage – Mechanical stress can degrade resistor reliability.

• Longer processing time – Less efficient for high-volume production.

Advantages of Laser Resistor Trimming

Compared to traditional methods, laser resistor trimming offers numerous advantages:

1. High Precision – Achieves accuracy levels as fine as ±0.01%.

2. Non-Contact Process – Avoids mechanical stress and damage.

3. Automated & Programmable – Enables large-scale production with consistent quality.

4. Wide Material Compatibility – Works with thick film, metal film, and film thermistors.

5. Fast Processing Speed – Significantly reduces manufacturing time.

Industry Applications of Laser Resistor Trimming

Due to its accuracy and reliability, laser trimming is widely used across multiple industries:

• Aerospace & Defense – Precision resistors for navigation and communication systems.

• Medical Equipment – High-stability resistors for diagnostic devices.

• Automotive Electronics – Sensors and control circuits in modern vehicles.

• Telecommunications – Microwave and RF circuit components.

Laser Resistor Trimming vs. Traditional Resistor Adjustment

Conclusion

Laser resistor trimming has revolutionized the electronics industry by offering unparalleled precision, speed, and reliability. While traditional adjustment methods still have niche applications, laser trimming is the preferred choice for high-performance resistors in aerospace, medical, automotive, and telecommunication industries. As technology advances, laser trimming will continue to play a crucial role in the production of high-precision electronic components.
